| 원래 장소: | 광 동 중국 |
|---|---|
| 브랜드 이름: | Texin |
| Minimum Order Quantity: | 1 |
| 가격: | 협상 가능 |
| Packaging Details: | Durable box |
| 배달 시간: | 5-7 근무일 |
| 지불 조건: | TT ustd 위챗 페이팔 |
| 공급 능력: | 1000000/per 달 |
| 유형: | 광대역 전력 증폭기 | 밴드: | 1000-6200MHz |
|---|---|---|---|
| 얻다: | 50dBM | 현재의: | 9A |
| 작업 온도: | -40~+65C | 애플리케이션: | 무선통신, 레이더, 테스트 장비 |
| 아웃 쉘 크기: | 250*150*25mm | 마운트 홀: | 250*150mm |
| 강조하다: | Broadband Power Amplifier 1000-6200MHz,RF Broadband Power Amplifier module,High performance Power Amplifier RF |
||

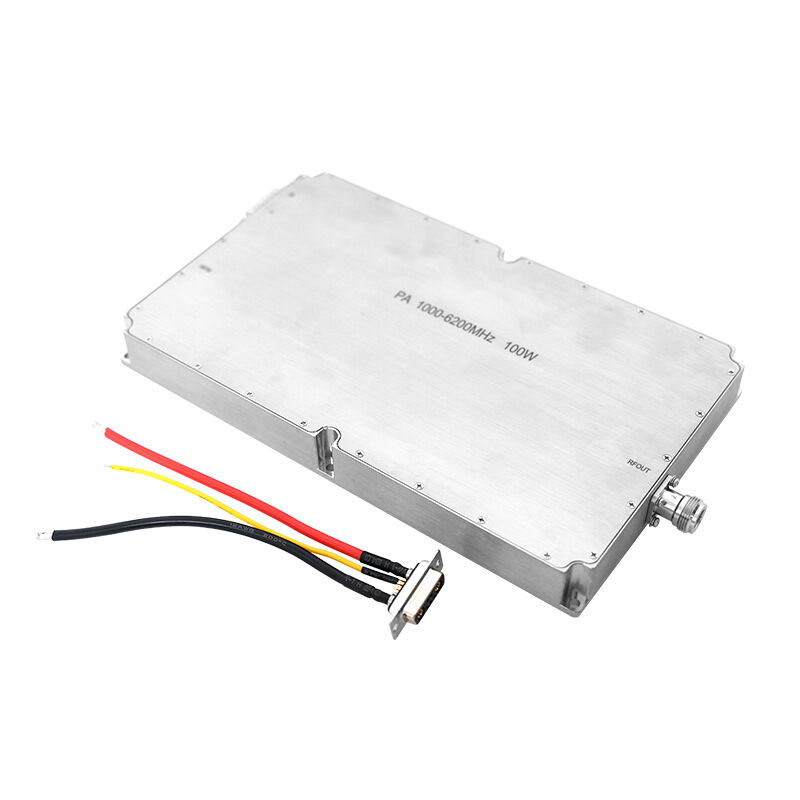

The Broadband Power Amplifier is a high-performance PA power amplifier module designed to deliver exceptional amplification across a wide frequency spectrum. Engineered for versatility and reliability, this broadband power amplifier operates seamlessly over an extensive frequency range of 0.1 GHz to 6.2 GHz, making it an ideal solution for various communication and signal processing applications.
Operating within a broad temperature range from -40°C to +65°C, this PA power amplifier module is built to withstand harsh environmental conditions without compromising performance. The robust thermal design contributes to the longevity and durability of the device, making it a dependable component in mission-critical applications.
| No. | Item | Data | Unit |
|---|---|---|---|
| 1 | Frequency | 1000-6200 | MHz |
| 2 | Test voltage | 28-32 | V |
| 3 | Current | 9 | A |
| 4 | Output | 100 | W |
| 5 | Gain | 53 | dB |
| 6 | Output stability | 1 | dB |
| 7 | Input stability | 0-10 | dB |
| 8 | Connector | N/ Female | |
| 9 | Output connector VSWR | ≤1.30 (No power and VNA test) | |
| 10 | Power supply wire | Red+Black+Enable wire | |
| 11 | Enable Control | High ON Low Off | |

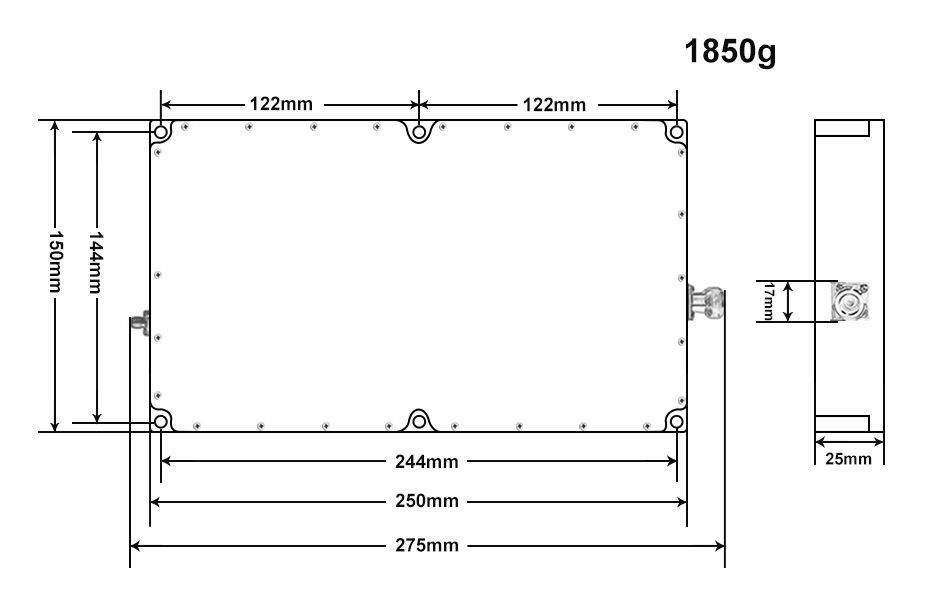

| 12 | Out shell Size | 250*150*25 | mm |
| 13 | Mount hole | 250*150 | mm |
| 14 | Weight | 1850 | g |
| 15 | Work Temperature | -40~+65 | ℃ |
| 16 | Out shell material | Aluminum | |
| 17 | Vibration need | Car load OK | |
The Texin Broadband Power Amplifier is an advanced 0dbm input power amplifier designed to meet the demanding requirements of modern communication and defense systems. Its high linearity and impressive gain of 50 dB make it ideal for applications where signal integrity and amplification efficiency are critical.
This broadband power amplifier is widely used in drone defense systems, telecommunications infrastructure, wireless communication networks, and radar systems. Its ability to handle a wide frequency range with minimal distortion ensures optimal performance across diverse scenarios.
The product comes with a one-year warranty and is packaged securely for safe delivery within 5-7 working days. With a supply ability of up to 1,000,000 units per month and flexible payment terms, this amplifier caters to both large-scale deployments and individual project needs.
