| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | TeXin |
| 인증: | CE ISO |
| 모델 번호: | TX-PD50W |
| 최소 주문 수량: | 1 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 오래가는 경우 또는 상자 |
| 배달 시간: | 5~8일 |
| 지불 조건: | L/C, D/A, D/P, T/T, 서부 동맹 |
| 공급 능력: | 100000월당 |
| 힘: | 50W | 빈도: | 6GHz 7GHz |
|---|---|---|---|
| 전압: | 28V | 현재의: | 5.5A |
| 무게: | 300g | 크기: | 132*53*24mm |
| 칩: | GaN | ||
| 강조하다: | 50W GaN anti drone jammer,6GHz RF signal jammer module,7GHz capital security jammer |
||

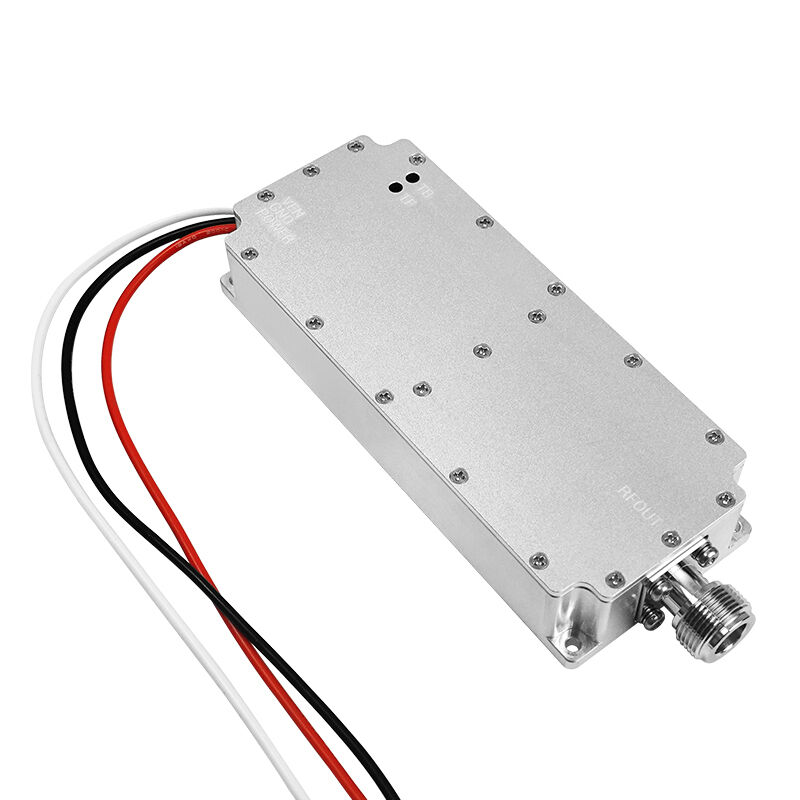

With global tensions high, security measures are an indispensable part of the situation. This 50W 6GHz 7GHz RF anti-drone signal jammer module is an important component of anti-drone systems. It can cover high frequency 6GHz-7GHz with 50W output power, achieving a jamming distance of 1-1.5km in unobstructed environments.
The 50W 6GHz 7GHz anti-drone jammer module utilizes GaN chip technology, providing higher efficiency with smaller current consumption compared to LDMOS solutions. Furthermore, the module is compact, easy to carry and install; customers simply need to purchase the module and install it themselves. TEIXN has more than 15 years of experience in the RF area and we have the ability to provide unique design solutions.
| No. | Item | Data | Unit |
|---|---|---|---|
| 1 | Frequency | 5925-6425 | MHz |
| 2 | Test Voltage | 28 | V |
| 3 | Current | 5.5 | A |
| 4 | Output | 50 | W |
| 5 | Gain | 47 | dB |
| 6 | Output Stability | 1 | dB |
| 7 | Connector | SMA/Female | |
| 8 | Output Connector VSWR | ≤1.30 (No power and VNA test) | |
| 9 | Power Supply Wire | Red+Black+Enable wire | |
| 10 | Enable Control | High ON Low Off | |
| 11 | Outer Shell Size | 132×53×17 | mm |
| 12 | Mount Hole | 125×46 | mm |
| 13 | Weight | 200 | g |
| 14 | Work Temperature | -40 to +65 | ℃ |
| 15 | Outer Shell Material | Aluminum | |
| 16 | Vibration Requirement | Car load OK | |
We support orders starting from one piece, but do not offer free samples.
Prices vary depending on the frequency band; please feel free to contact us.
T/T, Alibaba, Paypal, USDT, Alipay, Wechat, etc.
Orders are usually shipped within 5-7 days after placement.
