홈 > 제품 소개> RF 전력 증폭기> Aluminum outshell 500-1000MHz 50W wide band rf power amplifier for wireless signal basestation

Aluminum outshell 500-1000MHz 50W wide band rf power amplifier for wireless signal basestation

Aluminum outshell 500-1000MHz 50W wide band rf power amplifier for wireless signal basestation
Aluminum outshell 500-1000MHz 50W wide band rf power amplifier for wireless signal basestation
Aluminum outshell 500-1000MHz 50W wide band rf power amplifier for wireless signal basestation Aluminum outshell 500-1000MHz 50W wide band rf power amplifier for wireless signal basestation Aluminum outshell 500-1000MHz 50W wide band rf power amplifier for wireless signal basestation
기본 정보
원래 장소: 중국 선전
브랜드 이름: TeXin
인증: SGS,ISO9001,ROHS
모델 번호: TX-P050VGHS
최소 주문 수량: 1
가격: 협상 가능
포장 세부 사항: 오래가는 경우 또는 상자
배달 시간: 5~8일
지불 조건: L/C, D/A, D/P, T/T, 서부 동맹
공급 능력: 달 당 10000pcs
최고의 가격 지금 연락
상세 정보
상표: 텍신 힘: 50W
빈도: 500-1000MHz 전압: 24-28V
얻다: 47dBm 유형: 방해기 모듈
애플리케이션: 핵심지역 보호 크기: 176*84*26
무게: 779g
강조하다:

aluminum outshell RF power amplifier

,

50W wide band power amplifier

,

500-1000MHz wireless signal amplifier

제품 설명

Aluminum Outshell 500-1000MHz 50W Wide Band RF Power Amplifier for Wireless Signal Basestation
Our 500-1000MHz 50W broadband RF power amplifier is specifically designed for wireless signal base stations, integrating high power, wide bandwidth coverage, and a robust and durable aluminum alloy housing. It is primarily used for power amplification in 4G LTE, private network communications (public security, emergency response, railway), and wireless signal coverage base stations, effectively compensating for signal loss during transmission, extending base station coverage, and ensuring stable signal transmission. Simultaneously, the 500-1000MHz 50W broadband power amplifier is also suitable for various security applications.
Key Features
  • 4G LTE Base Station: Suitable for 4G base stations using 700/800/900MHz frequency bands, used for power amplification of downlink signals, expanding the coverage of base stations, especially solving the problem of weak signal in rural areas, remote mountainous areas and other areas with sparse base stations.
  • Private Drone Signal Base Station: Applied to public security, fire protection, railway, power and other industry private network base stations (400/800MHz cluster communication), ensuring stable transmission of emergency command voice and data signals, improving the communication efficiency of the private network.
  • Wireless Signal Coverage Base Station: Used in indoor and outdoor signal coverage base stations (such as basements, shopping malls, stadiums, highways), compensating for signal loss in transmission, enhancing signal strength, and realizing full coverage of wireless signals.
  • Base Station Signal Repeater: As a core component of the base station repeater, it amplifies the received weak base station signal and retransmits it, expanding the coverage radius of the original base station and reducing the cost of building new base stations.
Technical Specifications
No. Item Data Unit
1 Frequency Customized MHz
2 Test voltage 24-28 V
3 Current 3 A
4 Output 50 W
5 Gain 47 dB
6 Output stability 1 dB
7 Connector SMA / Female
8 Output connector VSWR ≤1.30 (No power and VNA test)
9 Standard input 0-10DB
10 Power supply wire Red+Black+Enable wire
11 Enable Control High ON Low Off
12 Out shell Size 177*84*26 mm
13 Mount hole 170*78 mm
14 Weight 764 g
15 Work Temperature -40~+65 ℃
16 Out shell material Aluminum
17 Vibration need Car load OK
Applications
  • VIP privacy protection: Preventing illegal drones from tracking important clients
  • Airports: Preventing drone interference with flight paths
  • Agriculture: Preventing drone-based crop poisoning
  • Schools: Educational materials for student learning
  • Downtown areas: Combating terrorist drone attacks
  • Government security departments: Combating illegal and criminal activities
After Service
  • Purchased Texin products come with a 1-year warranty.
  • Includes technical specifications and user manual.
  • We provide technology support after buy our products.

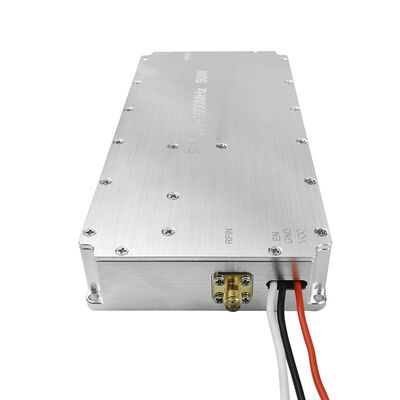

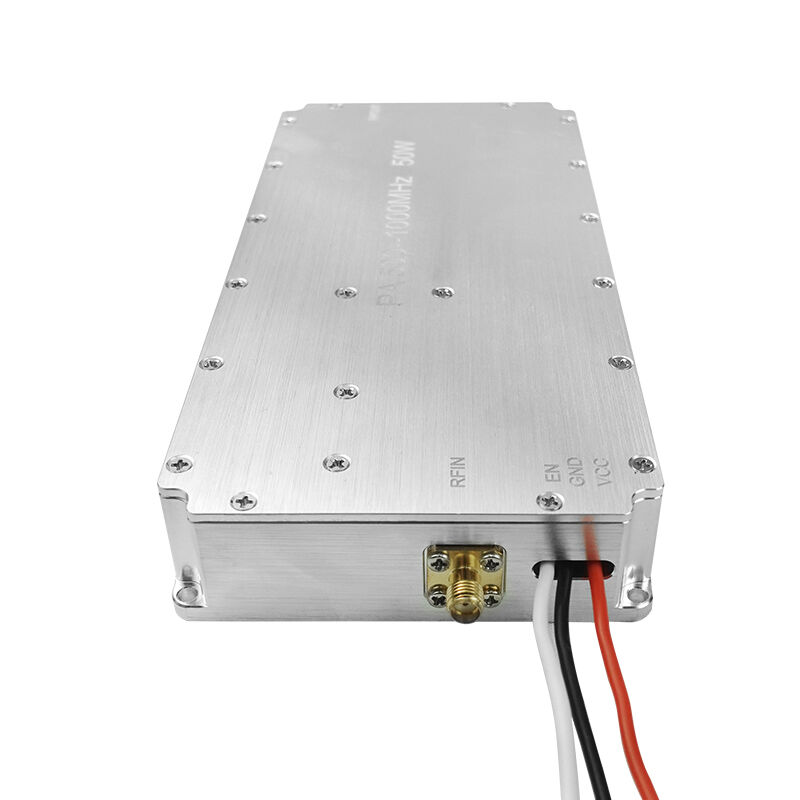

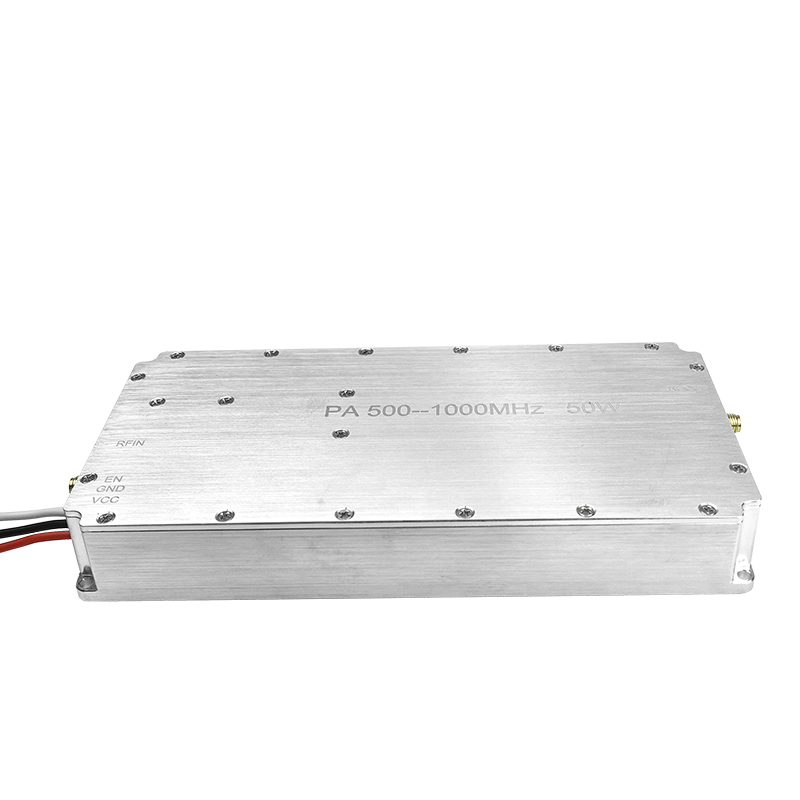

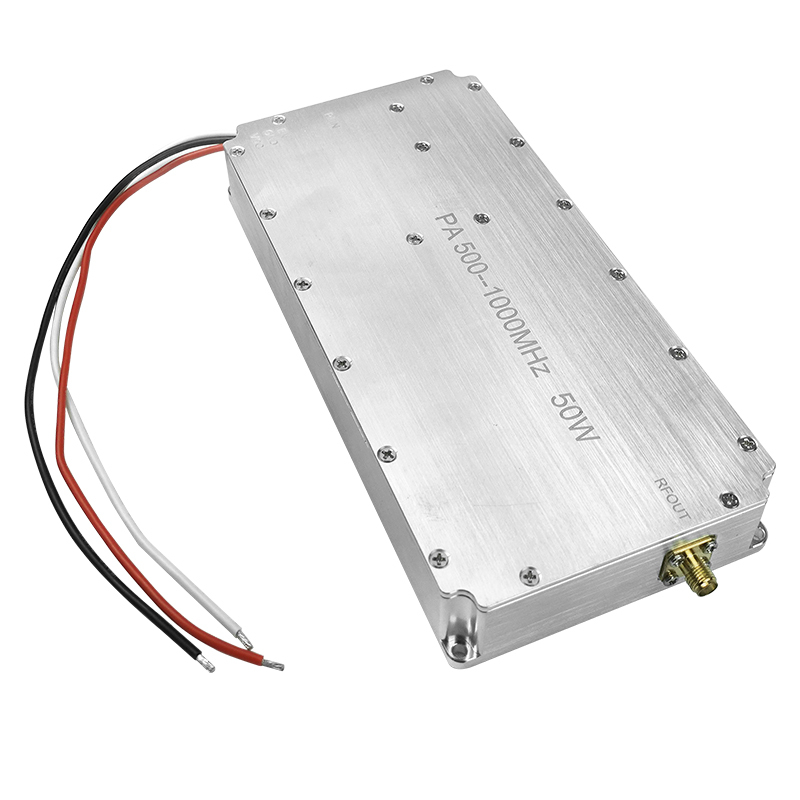

Product Images
Aluminum outshell 500-1000MHz 50W wide band rf power amplifier for wireless signal basestation 0 Aluminum outshell 500-1000MHz 50W wide band rf power amplifier for wireless signal basestation 1 Aluminum outshell 500-1000MHz 50W wide band rf power amplifier for wireless signal basestation 2 Aluminum outshell 500-1000MHz 50W wide band rf power amplifier for wireless signal basestation 3
Frequently Asked Questions
How much of this drone signal jammer module?

The newest price please contact us, we use tiered pricing; the more you buy, the better the value for money.

What is the minimum purchase quantity?

One order is supported; free samples are not available.

What is the delivery time?

Delivery typically takes 5-7 working days after payment. For bulk orders, delivery time requires negotiation.
