| 원래 장소: | 중국 선전 |
|---|---|
| 브랜드 이름: | TeXin |
| 인증: | SGS,ISO9001,ROHS |
| 모델 번호: | TX-P100VGHN |
| 최소 주문 수량: | 1 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 오래가는 경우 또는 상자 |
| 배달 시간: | 5~8일 |
| 지불 조건: | L/C, D/A, D/P, T/T, 서부 동맹 |
| 공급 능력: | 달 당 10000pcs |
| 상표: | 텍신 | 힘: | 50W 100W |
|---|---|---|---|
| 빈도: | 400-3800MHz | 전압: | 24-28V |
| 얻다: | 47dbm /50dbm | 유형: | 방해기 모듈 |
| 애플리케이션: | 공기 보호 | 크기: | 130*53*19 |
| 무게: | 263g | ||
| 강조하다: | 400-3800MHz drone jammer module,100W voltage regulator drone jammer,24V-28V drone jammer module |
||

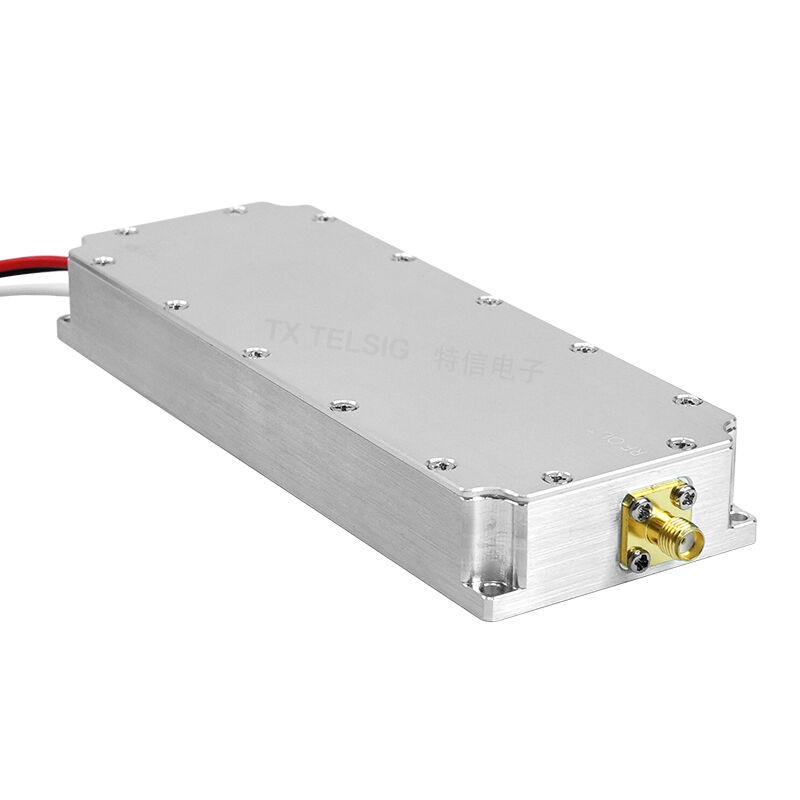

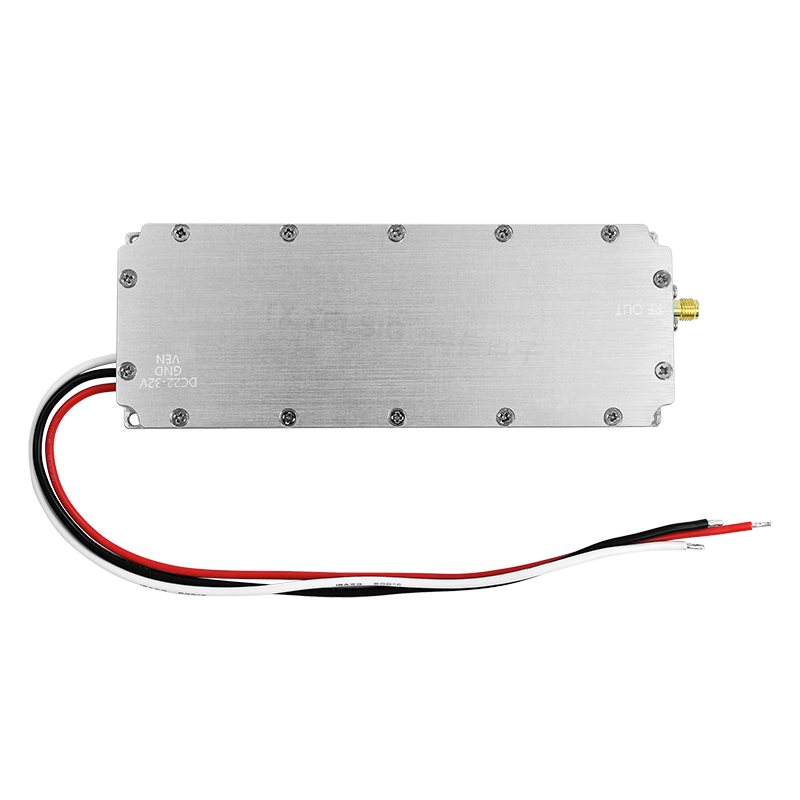

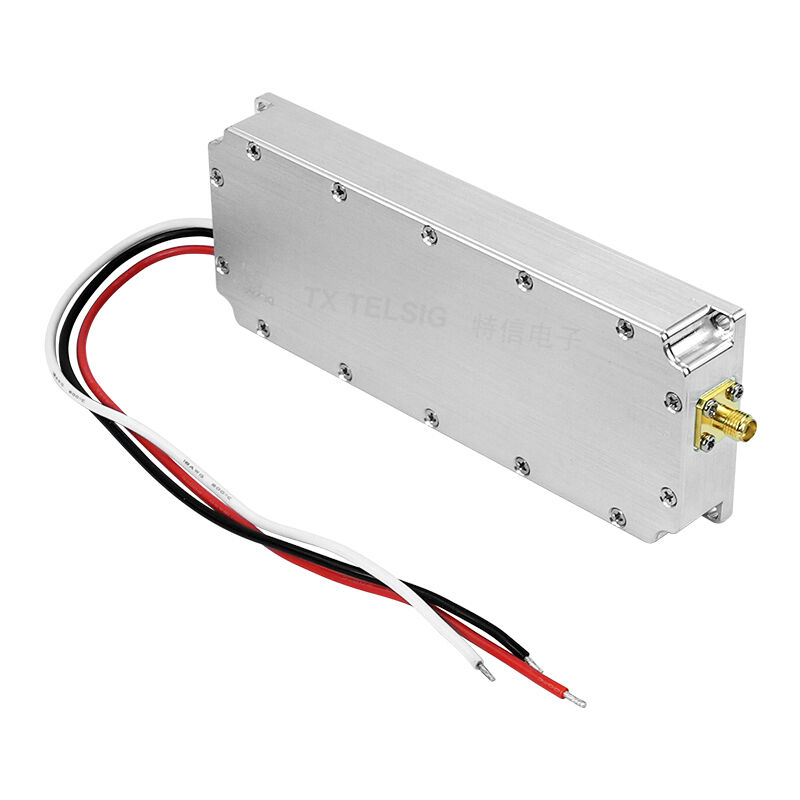

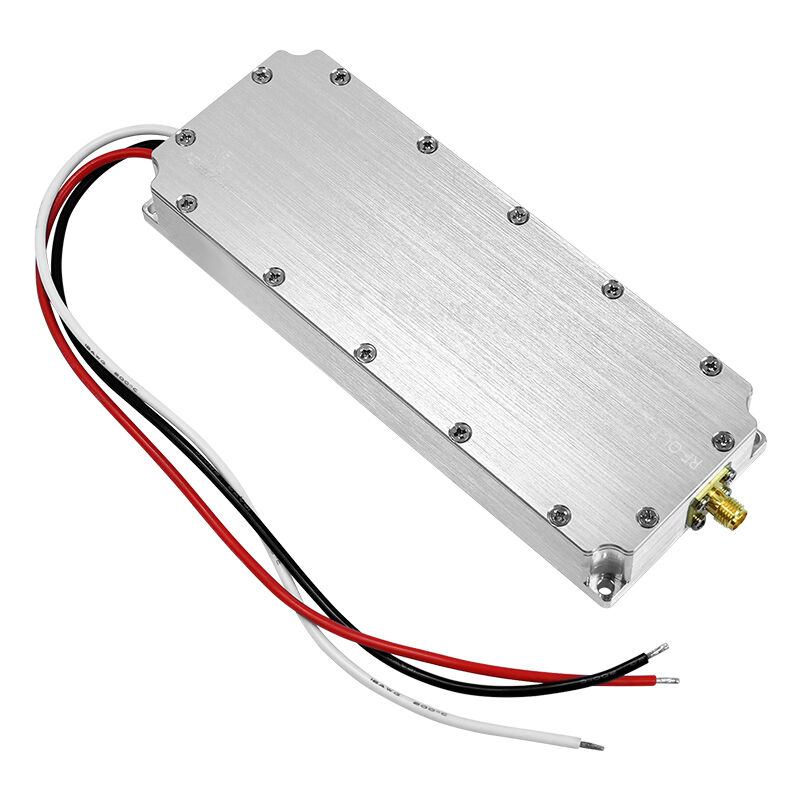

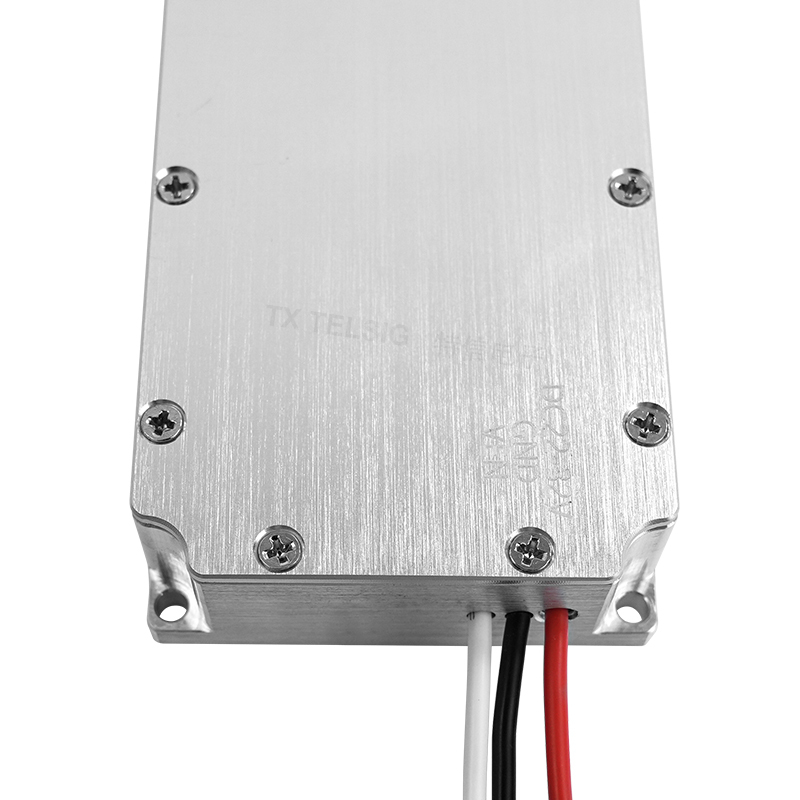

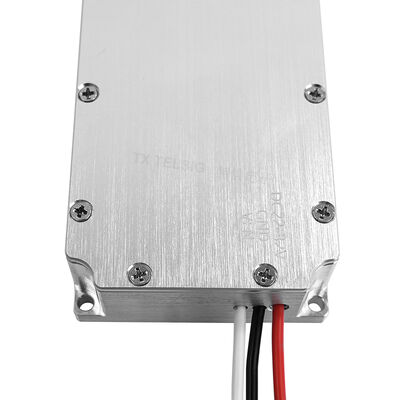

This high-power 100W 24V-28V voltage regulator drone jammer module is designed by Shen Zhen Texin. The module's key feature is stable 100W output at 24V-28V, which greatly enhances work efficiency and provides customers with two different voltage options. The efficiency remains consistent whether operating at 24V or 28V. For those experiencing interference from illegal drone FPV systems, this 24V-28V 100W 400-3800MHz module offers a high-quality drone jamming solution.
| No. | Item | Data | Unit | Notes |
|---|---|---|---|---|
| 1 | Frequency | 400-3800 | MHz | |
| 2 | Work Temperature | -20~+70 | ℃ | |
| 3 | Max Output Power | 100 | W | |
| 4 | Work Voltage | DC24-28 | V | |
| 5 | Max Gain | 50 | dB | |
| 6 | Flatness | ±3 | dB | |
| 7 | Max Current | 7 | A | |
| 8 | Output VSWR | ≤1.5 | ||
| 9 | Output Connector | SMA/F 50Ω | Customized | |
| 10 | Power Amplifier Efficiency | 45 | when Max Output | |
| 11 | Switch Control | high low level current | V | 0V off /0.6 on |
| 12 | Standing Wave Protection | OK | ||
| 13 | Temperature Protection | 75° | ℃ | |

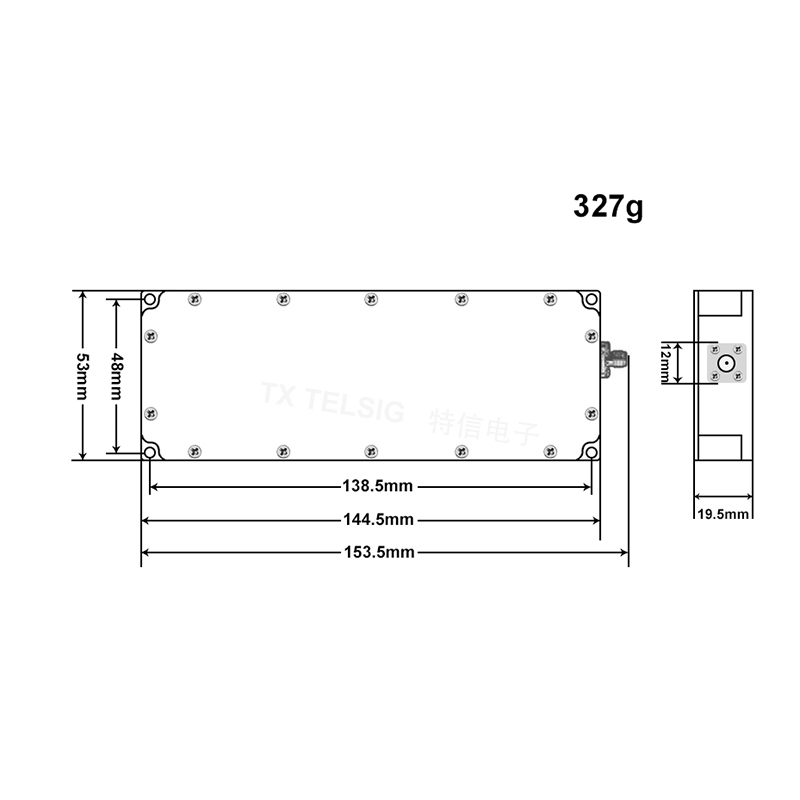

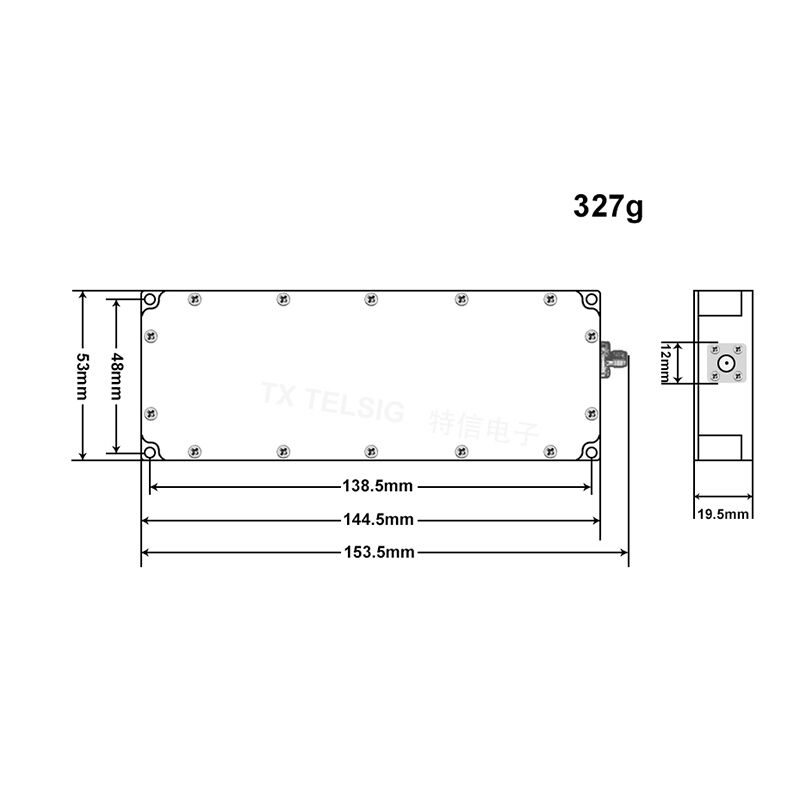

| 14 | Size | 53*139*19 | mm | |
| 15 | Weight | 0.263 | Kg |
With an operating temperature range of -20℃ to +65℃, it can operate normally in both the frigid north and the scorching south. Under normal use, its service life can reach 5 years. No complicated maintenance is required in daily life; only periodic checks of the interface and heat dissipation are needed.
Bulk purchases are eligible for tiered discounts; the larger the purchase volume, the lower the unit price. For specific discount details, please consult customer service. Delivery time depends on the purchase volume and customization requirements. Regular non-customized items are shipped in 3-7 days, while customized items are shipped in 7-15 days. Bulk customization can be expedited through negotiation to ensure that your equipment assembly and project implementation are not delayed.
Its core function is to suppress the signals normally received by drones by emitting high-power stable jamming signals that are consistent with the frequency bands of drone remote control, image transmission and navigation, so as to enable drones to return to home, make forced landings or hover. It is mainly used for low-altitude security and drone countermeasures. As a core component of vehicle-mounted jammers, portable jamming guns and fixed base stations, it protects the low-altitude security of the area.
