| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | TX TELSIG |
| 인증: | SGS，ISO9001 |
| 모델 번호: | TX-PD30W |
| 최소 주문 수량: | 1 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 내구성있는 케이스 또는 사용자 정의 |
| 배달 시간: | 2 일 |
| 지불 조건: | T/T, PayPal, L/C, D/A, D/P 등. |
| 공급 능력: | 달 당 5000 PCS (개인휴대통신) / |
| 상표: | 텍사스 | 빈도: | 맞춤형 |
|---|---|---|---|
| 힘: | 30W | 작업 전압: | 24-28V |
| 맥스 게인: | 45dB | 평탄: | ± 1 |
| 최대 전류: | 4A | 출력 커넥터: | SMA/F 50Ω |
| 무게: | 0.268KG | ||
| 강조하다: | 30W FPV UAV power amplifier,FPV UAV signal amplifier module,air protection power amplifier module |
||

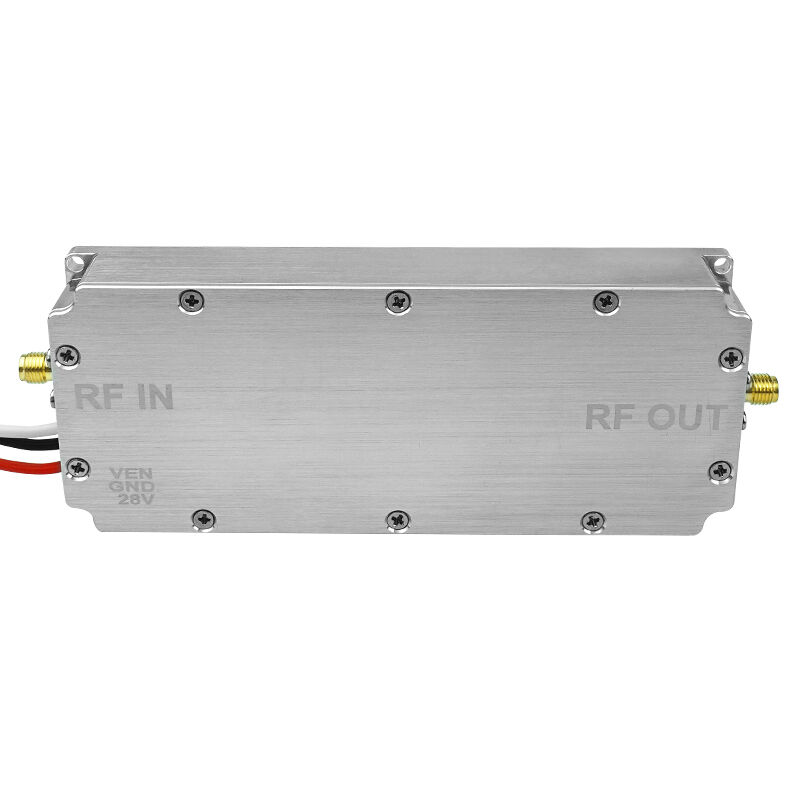

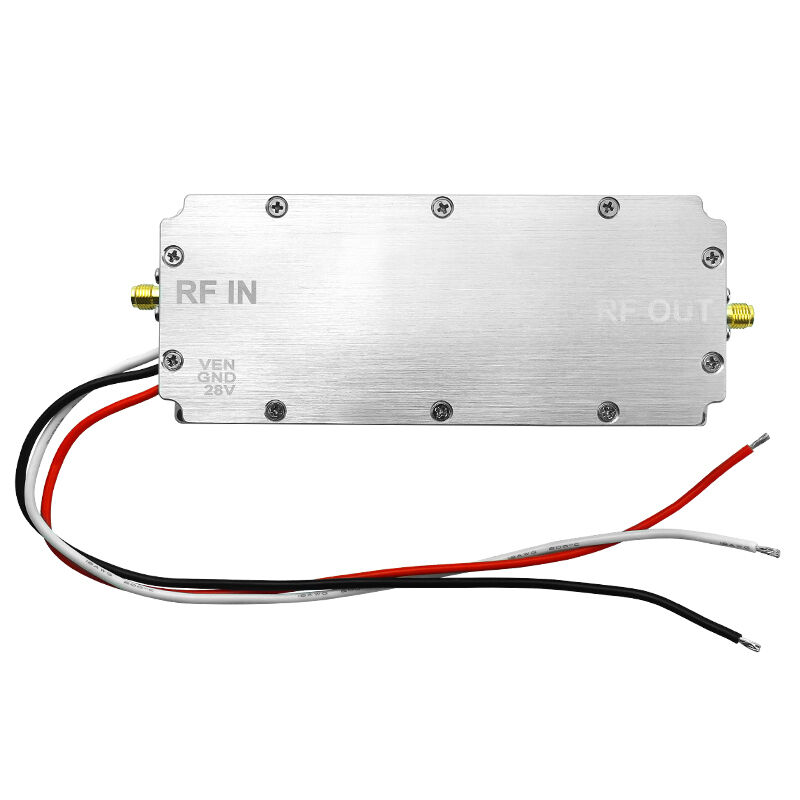

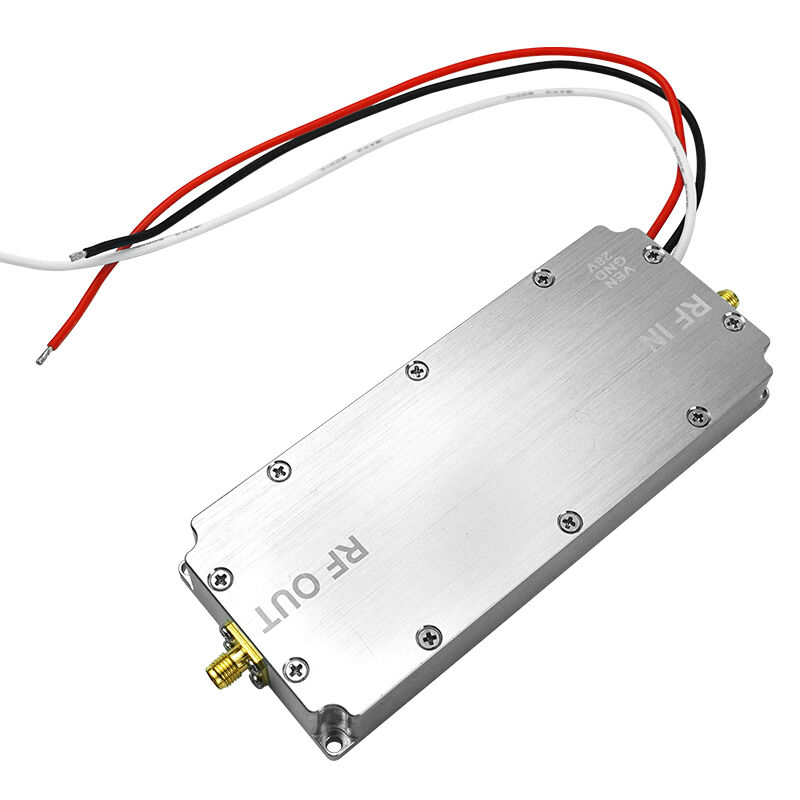

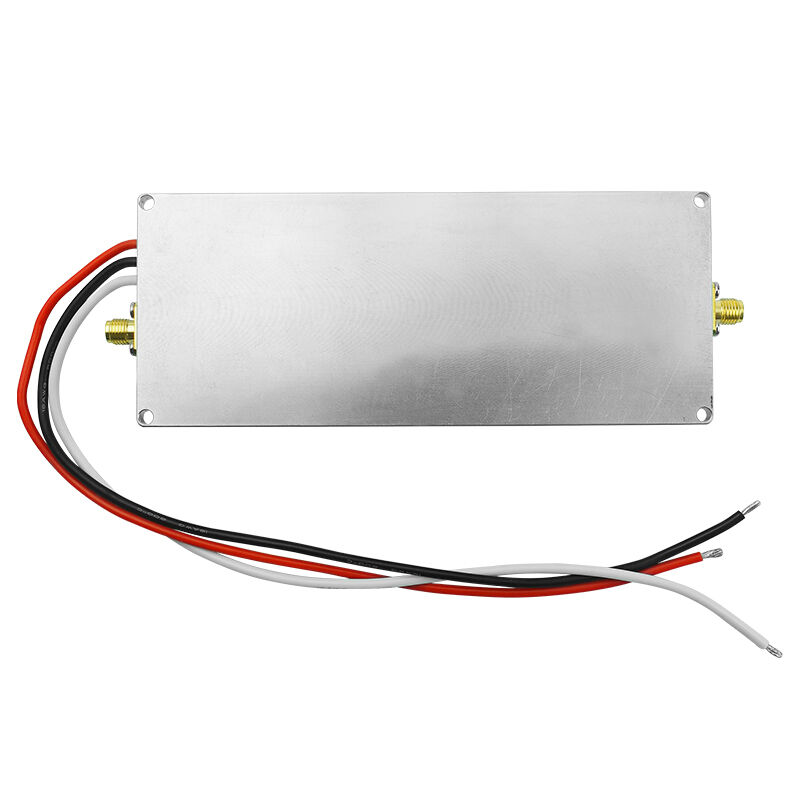

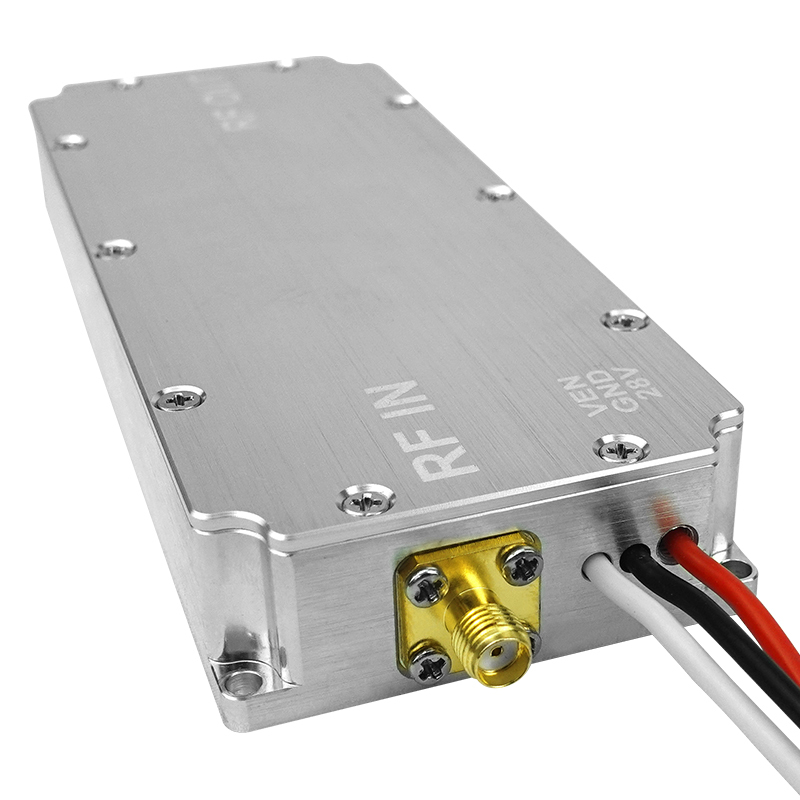

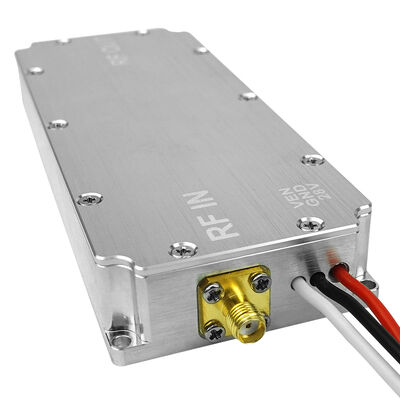

A 30W RF power amplifier module designed to amplify radio frequency signals for various applications including communications, radar systems, and RF testing. This module delivers maximum RF output power rated at 30 watts.
| No. | Item | Data | Unit | Notes |
|---|---|---|---|---|
| 1 | Frequency | Customized | MHz | |
| 2 | Work Temperature | -40~+85 | ℃ | |
| 3 | Max Output Power | 30 | W | |
| 4 | Work Voltage | 24-28 | V | |
| 5 | Max Gain | 45 | dB | |
| 6 | Flatness | ±1 | dB | |
| 7 | Max Current | 4 | A | |
| 8 | Output VSWR | ≤1.5 | ||
| 9 | Output Connector | SMA/F 50Ω | Customized | |
| 10 | Power Amplifier Efficiency | 45 | when Max Output | |
| 11 | Switch Control | high low level current | V | 0V off / 0.6V on |
| 12 | Standing Wave Protection | OK | ||
| 13 | Temperature Protection | 75 | ℃ | |
| 14 | Size | 139*53*19 | mm | |
| 15 | Weight | 0.268 | Kg |
Since 2014, Shenzhen Texin Electronics Co., Ltd (Brand name: TXtelsig or TeXin) has been a professional manufacturer of innovative signal jammers meeting international quality standards and market needs. Our factory is located in Shenzhen city, Guangdong Province, China, with complete facilities including SMT machines, assembly lines, and warehouse on the 2nd floor, and office space on the 3rd floor.
We typically provide quotes within 24 hours after receiving your inquiry. If you require urgent pricing, please indicate this in your email for priority handling.
Yes, we are the actual factory located in Shenzhen, China. We support full product customization and welcome factory visits.
We utilize advanced technology and comprehensive testing equipment. All products undergo 100% testing before shipment to ensure quality standards.
