| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | TeXin |
| 인증: | SGS,ISO9001 |
| 모델 번호: | TX-CD100W |
| 최소 주문 수량: | 1 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 오래가는 경우 또는 상자 |
| 배달 시간: | 3-5 일 |
| 지불 조건: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| 공급 능력: | 50,00PCS/Month |
| 빈도: | 2000-7200MHz(맞춤형) | 테스트 전압: | 28-32V |
|---|---|---|---|
| 현재의: | 9A | 산출: | 100W |
| 얻다: | 53 데이터 베이스 관리 프로그램 | 출력 안정성: | 1db |
| 커넥터: | N/여성 | 아웃 쉘 크기: | 220*110*26mm |
| 무게: | 1316g | 작업 온도: | -40~+65 |
| 외부 쉘 재료: | 알류미늄 | 애플리케이션: | 드론 방해기 |
| 강조하다: | RF amplifier module 100W,drone jammer power amplifier,Ultra band amplifier 2000-7200MHz |
||
Professional Ultra band 2000-7200mhz 100W power amplifier module designed by Texin, it is ultra band range 2000-7200mhz in one module. Users can install it by themselves to interfere with drones in the range from a distance, and the band 2000-7200mhz 100W power amplifier module supports customization.
The wide band power amplifier jammer module can be applied in areas with high requirements for low-altitude safety, such as airports, military restricted areas, large-scale event venues, chemical parks, and nuclear power plants. For example, at airports, it can prevent drones from entering no-fly zones, ensuring the normal takeoff and landing of flights; at large event venues, it can prevent illegal drone filming, maintaining safety and order at events.
| Description | Symbol | Min | Typ | Max | Unit | Remark |
|---|---|---|---|---|---|---|
| Operating Frequency | BW | 2000 | 7200 | MHz | ||
| Input Power | Pin | 0 | dBm | |||
| Output Power CW | Psat | 47 | 48 | 49.5 | dBm | Continuous Wave |
| Power Gain | Gp | 48 | dBm | @ Pin=0 dBm | ||
| Power Gain Flatness | △Gp | ±1.5 | dB | @ Pin=0 dBm | ||
| Input Return Loss | S11 | -15 | dB | |||
| Operating Voltage | Vdc | 28 | 28 | 36 | V | |
| Current Consumption | A | 7 | 9 | A | @ Pout=50~85W | |

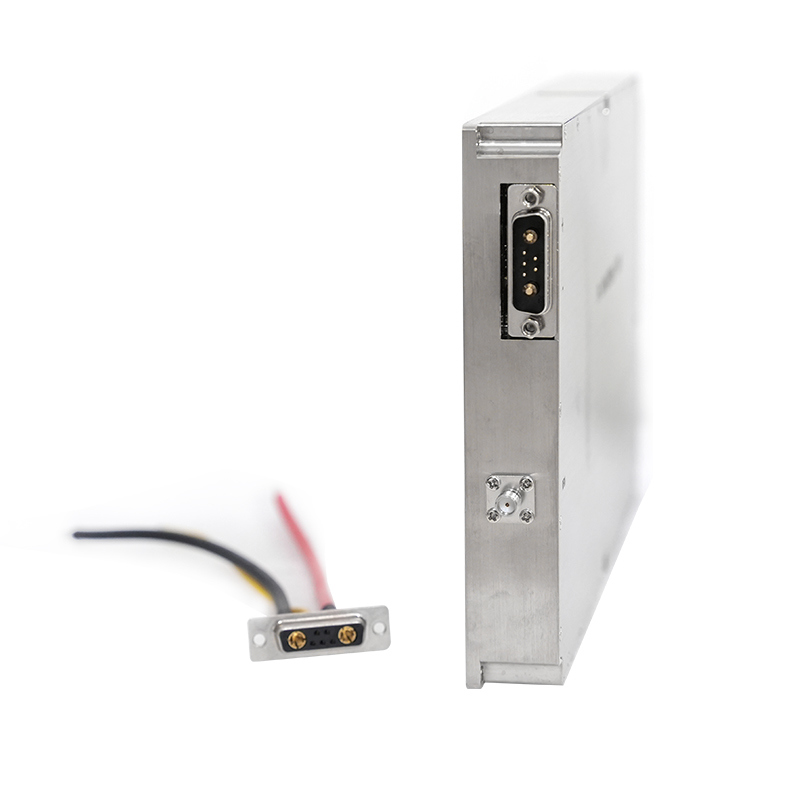

| RF Connector Input | SMA, Female | |||||
| RF Connector Output | SMA, Female | |||||
| Max Input Power | PinMax | ≤10 dBm | ||||
| Interface Definition | VDD | A1: 28Vdc | ||||
| GND | A2: Ground | |||||
| Enable | 1: 5V~Vdd:ON 0V:OFF | |||||
