| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | TeXin |
| 인증: | SGS,ISO9001 |
| 모델 번호: | TX-CD100W |
| 최소 주문 수량: | 1 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 오래가는 경우 또는 상자 |
| 배달 시간: | 3-5 일 |
| 지불 조건: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| 공급 능력: | 50,00PCS/Month |
| 빈도: | 2000-6000MHz(맞춤형) | 테스트 전압: | 28-32V |
|---|---|---|---|
| 현재의: | 9A | 산출: | 100W |
| 얻다: | 53 데이터 베이스 관리 프로그램 | 출력 안정성: | 1db |
| 커넥터: | N/여성 | 아웃 쉘 크기: | 220*110*26mm |
| 무게: | 1316g | 작업 온도: | -40~+65 |
| 외부 쉘 재료: | 알류미늄 | 애플리케이션: | 드론 방어 장치 |
| 강조하다: | 100W RF amplifier for drone defense,2000-6200MHz anti-drone amplifier,53dBm high power RF amplifier |
||

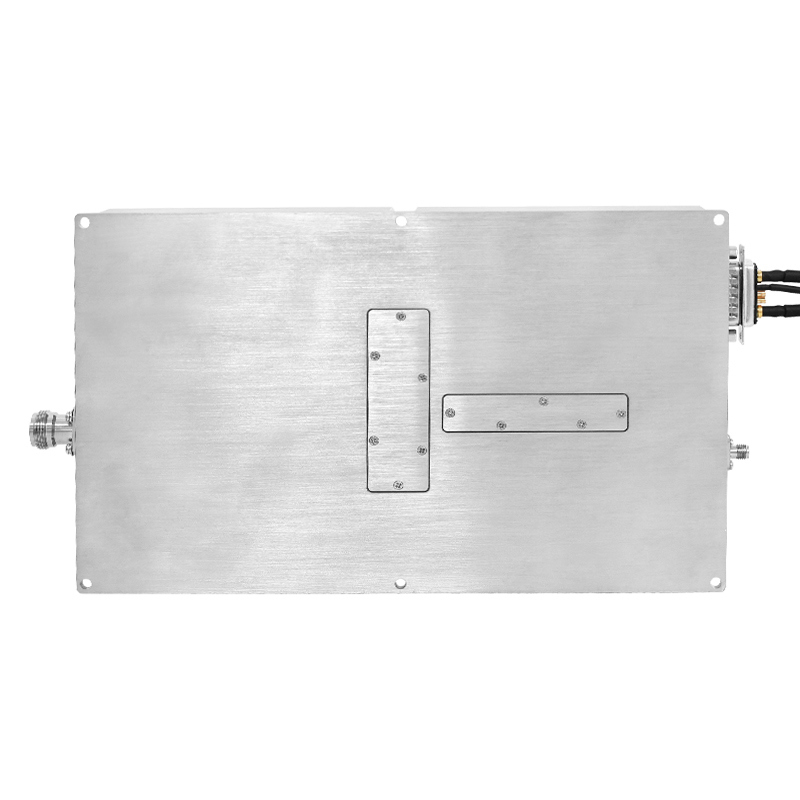

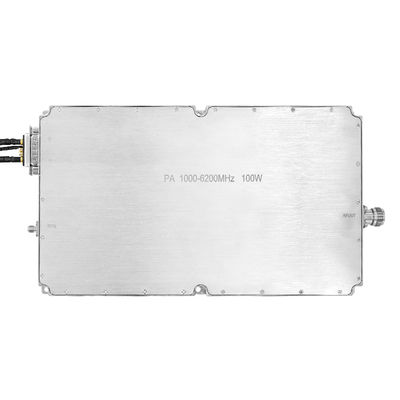

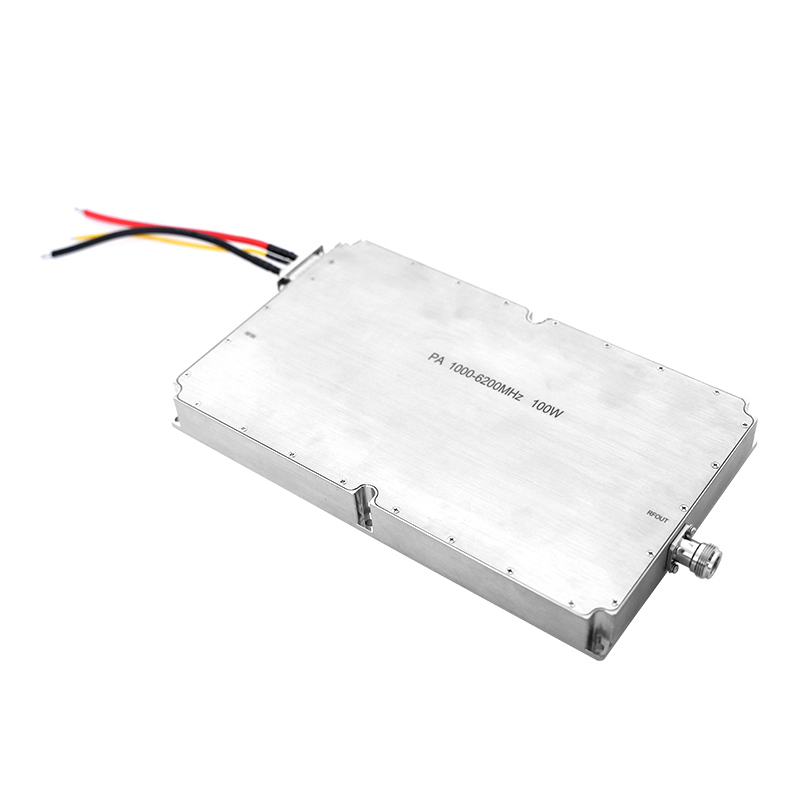

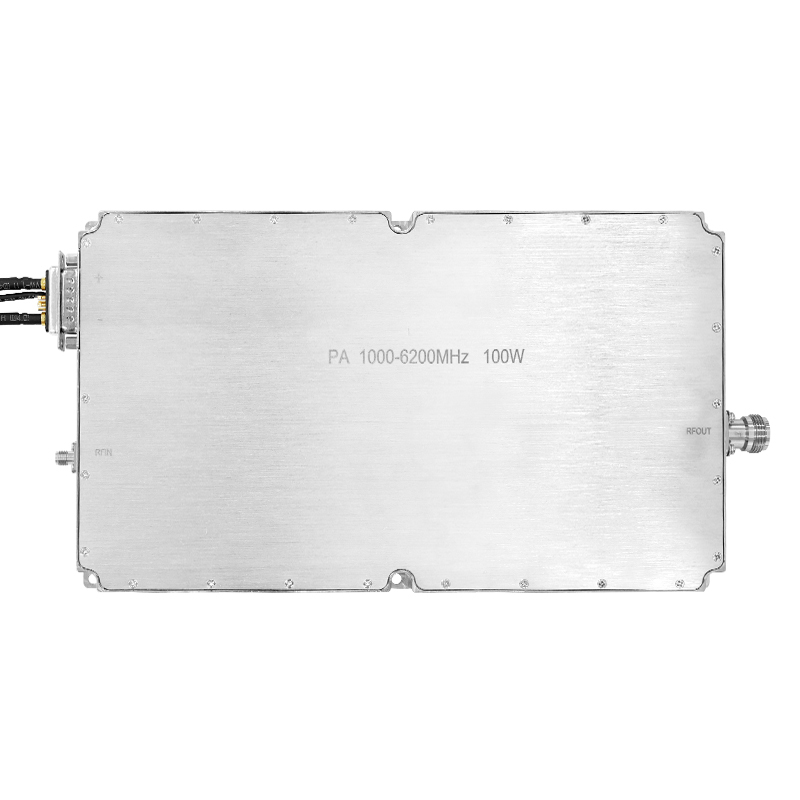

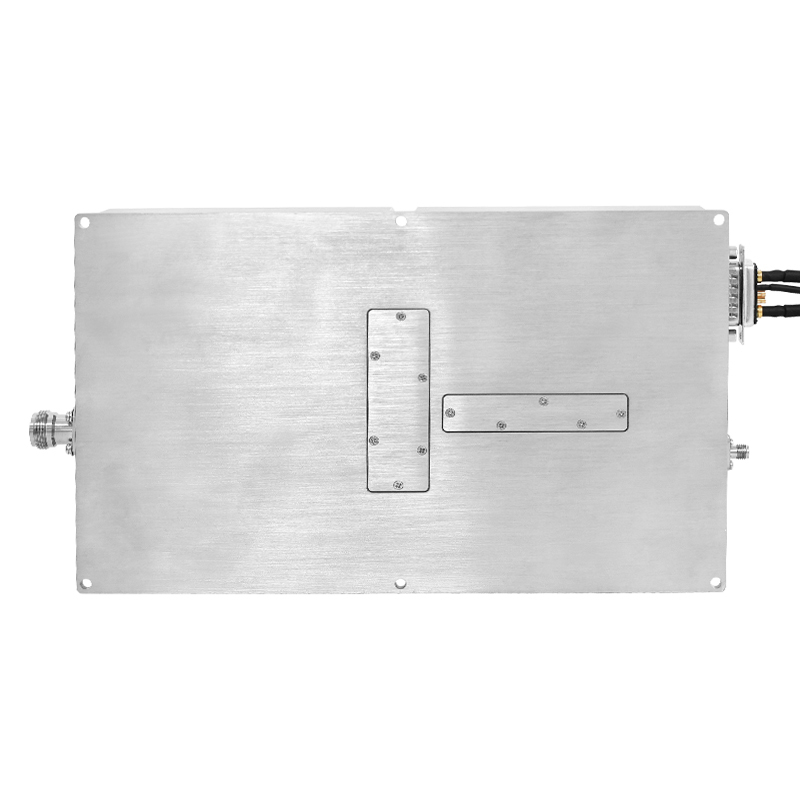

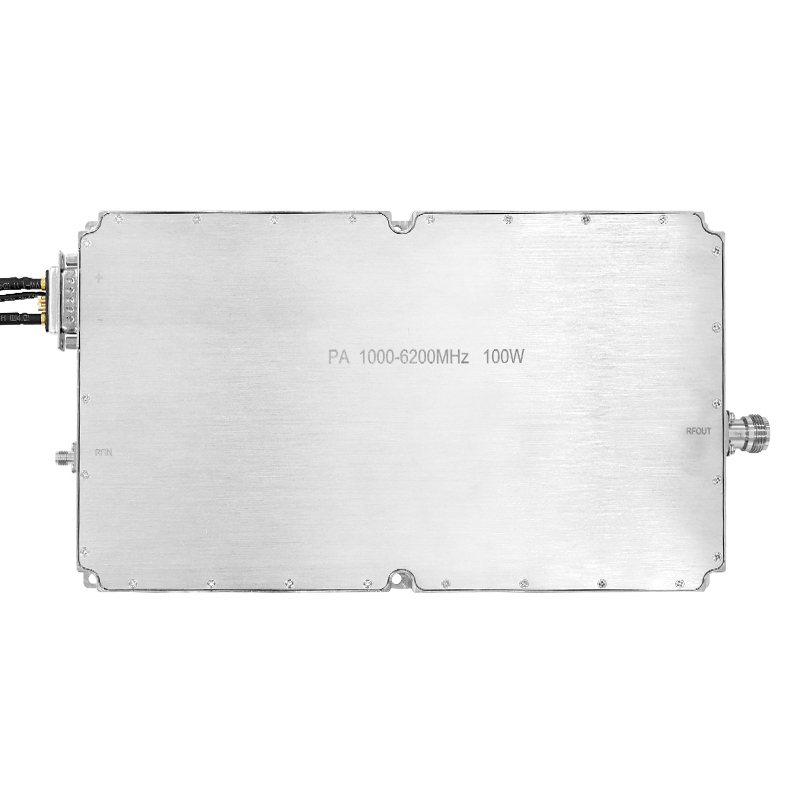

High power 100W band 2000-6200mhz anti drone power amplifier 53dbm for drone defense equipment
This High power 100W band 2000-6200mhz anti drone power amplifier module covers most of drone FPV signals, and can effectively interfere with the communication link between the drone and the control end. We provide solutions with different wattages such as 30W, 50W, and 100W according to customer needs.
The wide band power amplifier jammer module can be applied in areas with high requirements for low-altitude safety, such as airports, military restricted areas, large-scale event venues, chemical parks, and nuclear power plants. For example, at airports, it can prevent drones from entering no-fly zones, ensuring the normal takeoff and landing of flights; at large event venues, it can prevent illegal drone filming, maintaining safety and order at events.
220*110*26mm
1316g
28-32V
| Description | Symbol | Min | Typ | Max | Unit | Remark |
|---|---|---|---|---|---|---|
| Operating Frequency | BW | 2.0 | 6.0 | GHz | ||
| Input Power | Pin | 0 | dBm | |||
| Output Power CW | Psat | 47 | dBm | Continuous Wave | ||
| Power | Gp | 47 | dBm | |||
| Small Singal Gain Flatness | △G | ±2.0 | @ Pin=-30 dBm | |||
| Power Gain | Gp | ±1.0 | dB | @ Pin=0 dBm | ||
| Spurious Suppression | Spur | -60 | dBc | |||
| Input Return Loss | S11 | -15 | dB | |||
| Operating Voltage | Vdc | 28 | 28 | 32 | V | |
| Current Consumption | A | 10 | A | @ Psat | ||
| Switching Time | TON/TOFF | 2 | 5 | us | @ 1kHz TTL, Pin=0 dBm | |

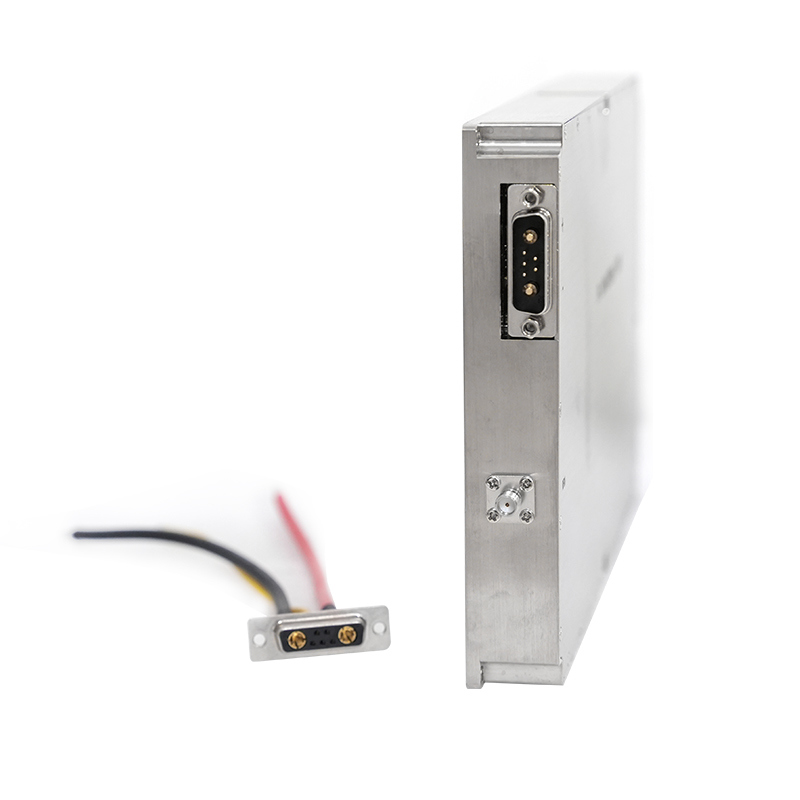

| RF Connector Input | SMA, Female | |||||
| RF Connector Output | N, Female | |||||
| Weight | 1.0 | Kg | ||||
| Length*Width*Height | 220×110×26 | mm | ||||
| Max Input Power | PinMax | ≤10 | dBm | |||
| (Line) | VDD | Red Line, 28Vdc | ||||
| GND | Blake Line | Ground | ||||
| SW | White Line | Amplifier Enable(Range :+5V to VDD) | ||||
